4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box

Brand Name : Hochiry

Model Number : GF20X

Certification : TUV

Place of Origin : CHINA

MOQ : 100Pcs

Price : 3.5USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Product Name : PV Combiner Box

Power : 300W

Safety Class : Class I I

Rated Voltage : 1000V DC

Flame Class : UL944-V0

Waterproof protection : IP67

Rated Currrent : 25A

Contact Now

4-24 Strings Array Solar Photovoltaic System Combination PV Combiner Box

Product description

For a large-scale grid-connected PV system, it is widespread to install a DC combining device between PV modules and inverters to minimize cable connections, facilitate maintenance and enhance reliability. IPKIS PV combiner box series (PVBOX) are designed for meeting these requirements, which provides a turnkey solution for PV plant systems. Considering different types of PVBOX, a certain number of PV strings can be connected to the input side of IPPVS. After combining work done, at the output side, there will be one DC+ and one DC- main line. By using of surge protection device (SPD) and circuit breakers, the output can be connected inverters directly.

Features:

  • Protection class IP67

  • With anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;

  • Surge protection device(SPD), circuit breaker, solar fuses, isolator, monitoring module equipped to meet your variability requirements;

  • Non-corrosive;

  • Much longer service life than that of metal;

Technical Parameter:

Model PVBOX-16/20/24-SMC/QST

Enclosure

 Material SMC gass-fibre reinforced polyester
Degree of protection IP67
IK data IK09
UV resistance Yes
Locking arrangement Hinge & latch-padlock
Operation temperature range -40℃~+60℃
Mounting type Wall mounted/structure mounted

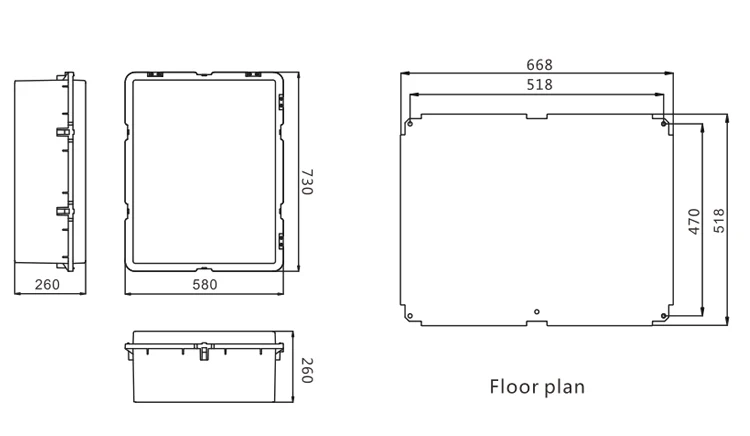

Dimensions of Enclosure (optional)

L: 930mm x W: 730mm x D:260mm

L: 730mm x W: 580mm x D:260mm

L: 933mm x W: 733mm x D:260mm

L: 733mm x W: 733mm x D:260mm

Electrical Parameters

 Max.PV system voltage DC1500V
Maximum current per string 30A
Maximum current per measuring channels 30A
Total permissible DC current Up to 240A
DC switch rating 315A
Fuses Optional up to 30A (2-30A)
Surge Protection Class II power SPD yes

Input

 Max.input ways 24
Cable entry Flexible selection with bottom, both sides
Input/output cable entrance Flexible selection with IP68 MC4, nylon PG/M cable gland
OEM Service Yes

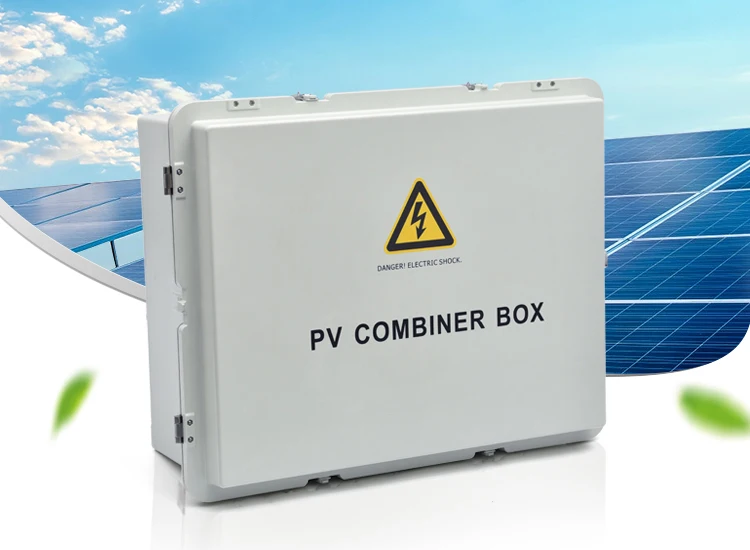

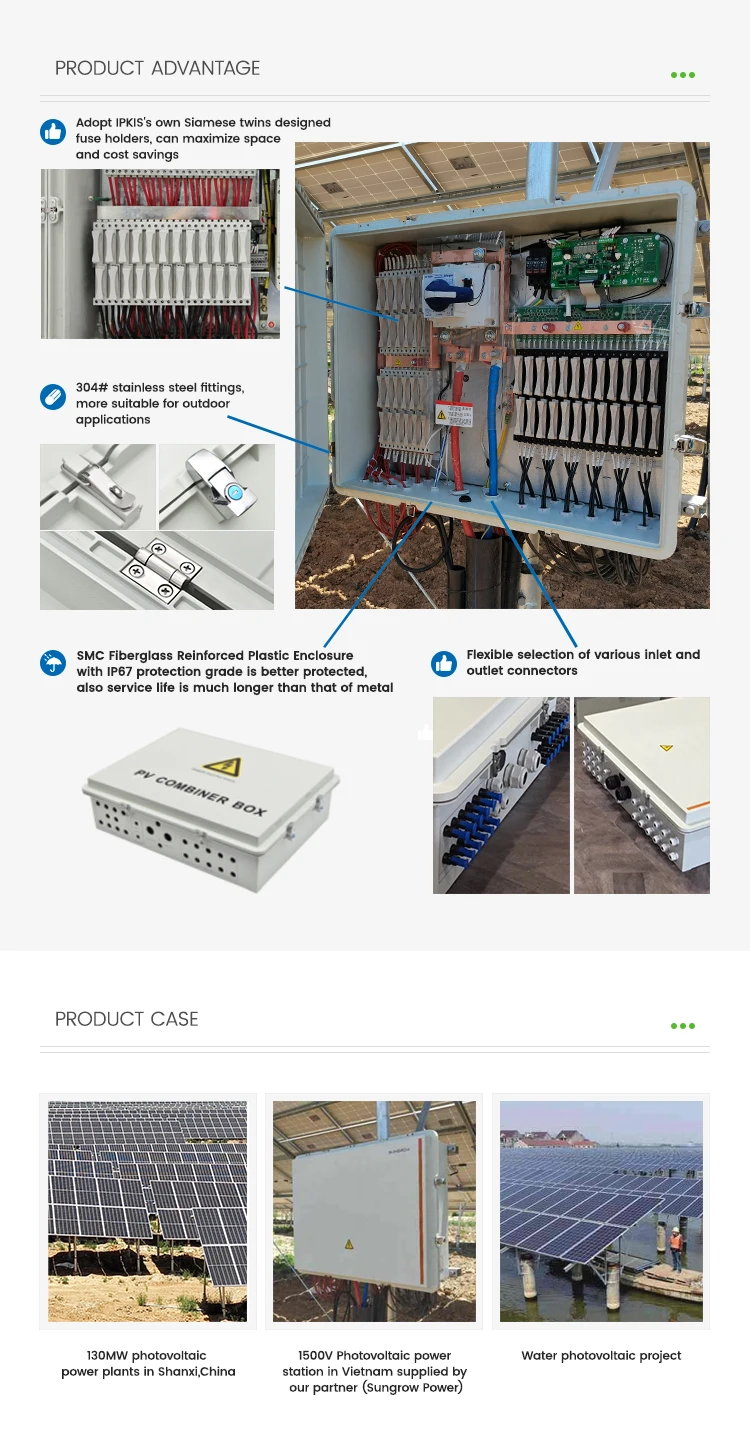

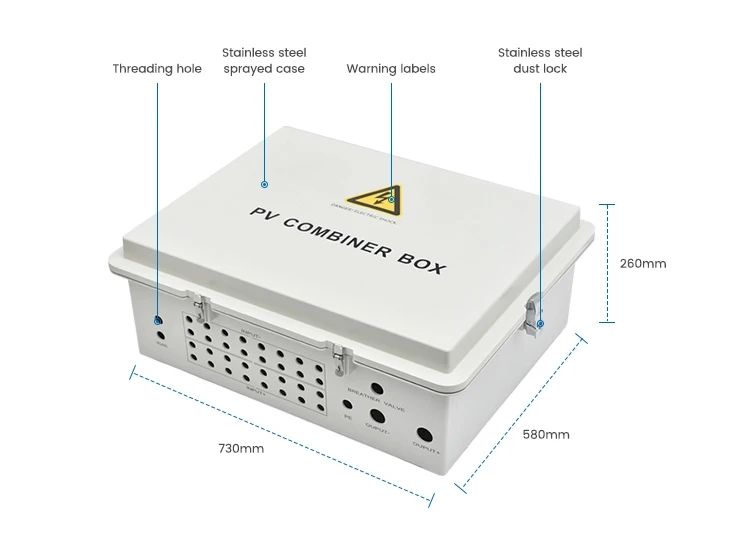

Product Details:

4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box

4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box

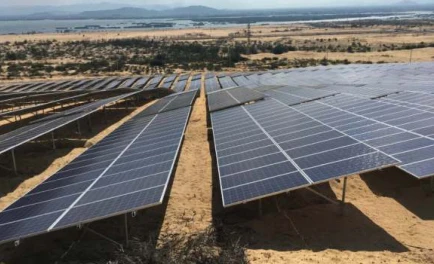

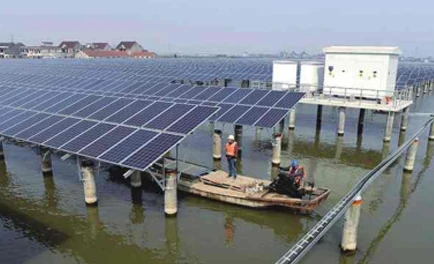

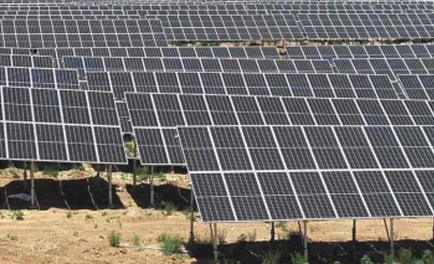

Product Case:
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
4-24 Strings Solar Array Junction Box , Photovoltaic Combiner Box
